40′ Electric Scissor Lifts
Product Specs
Specifications

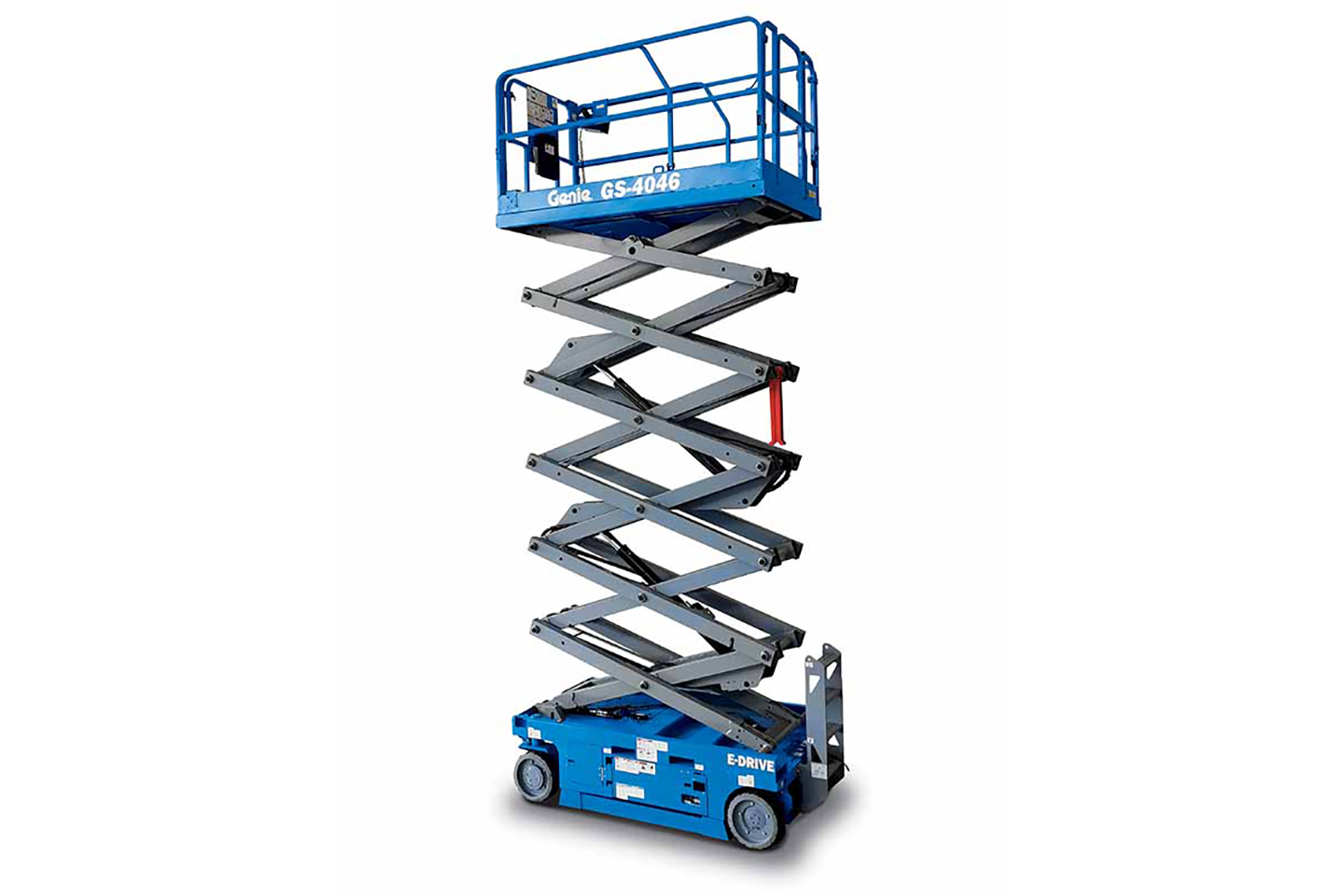

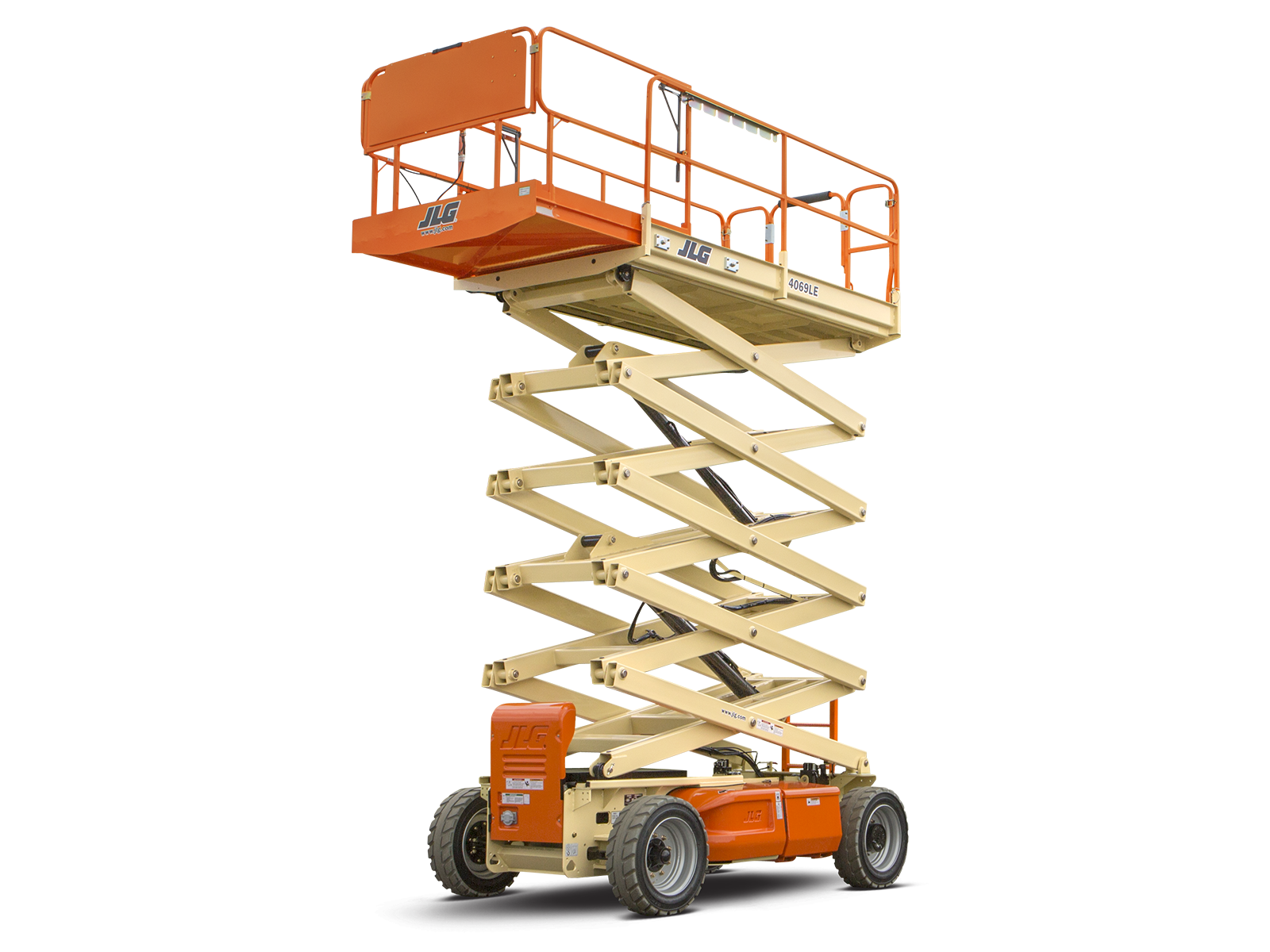

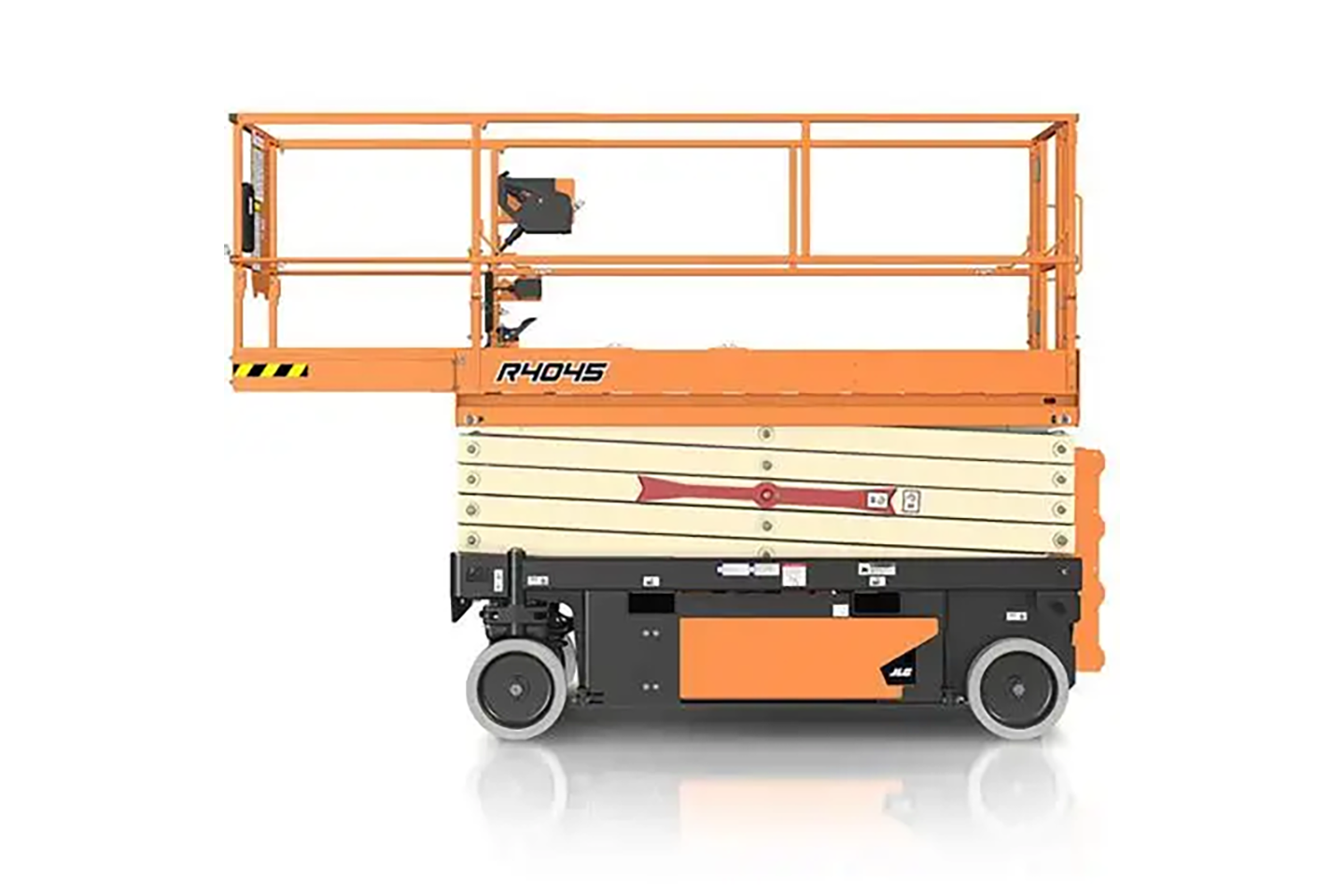

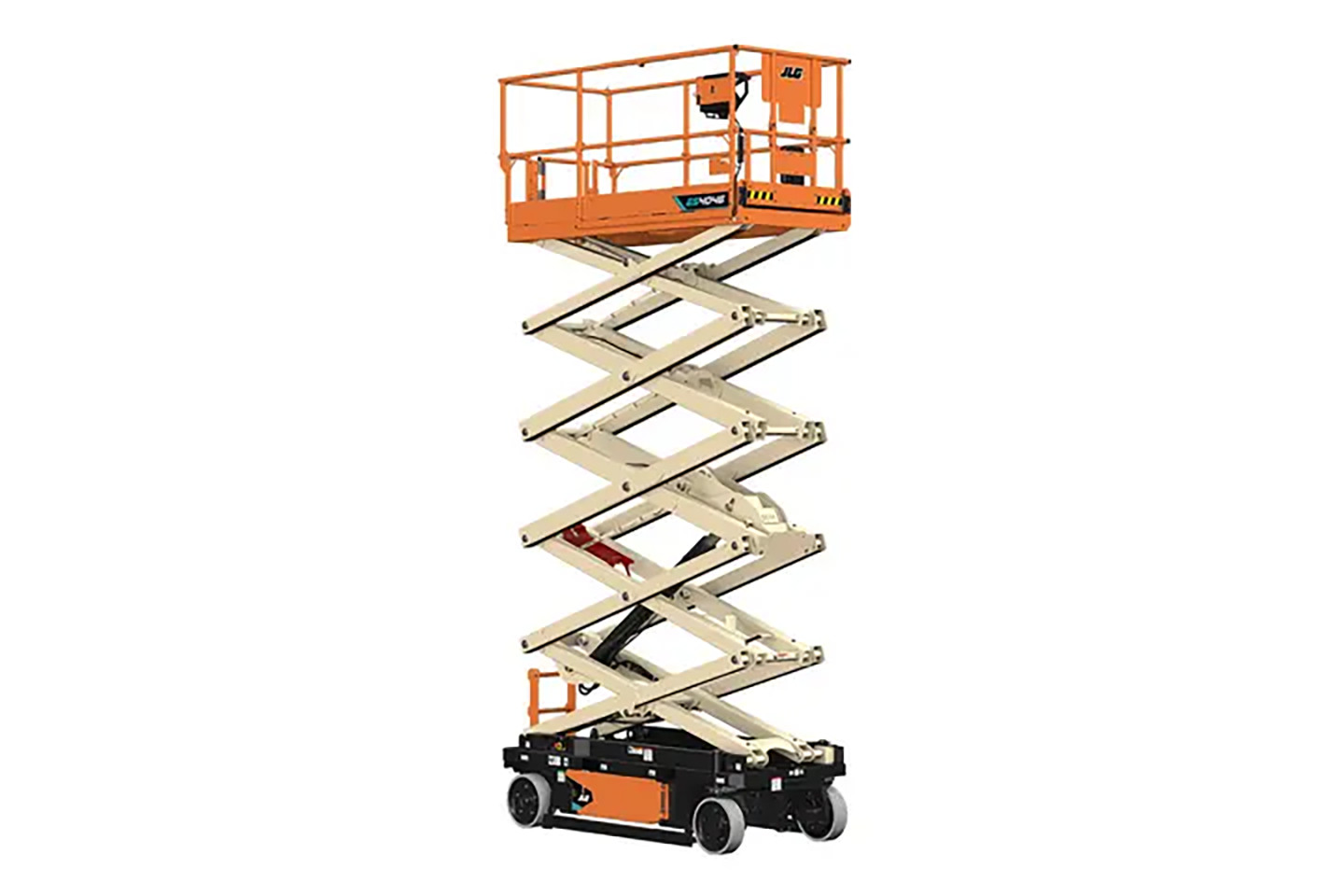

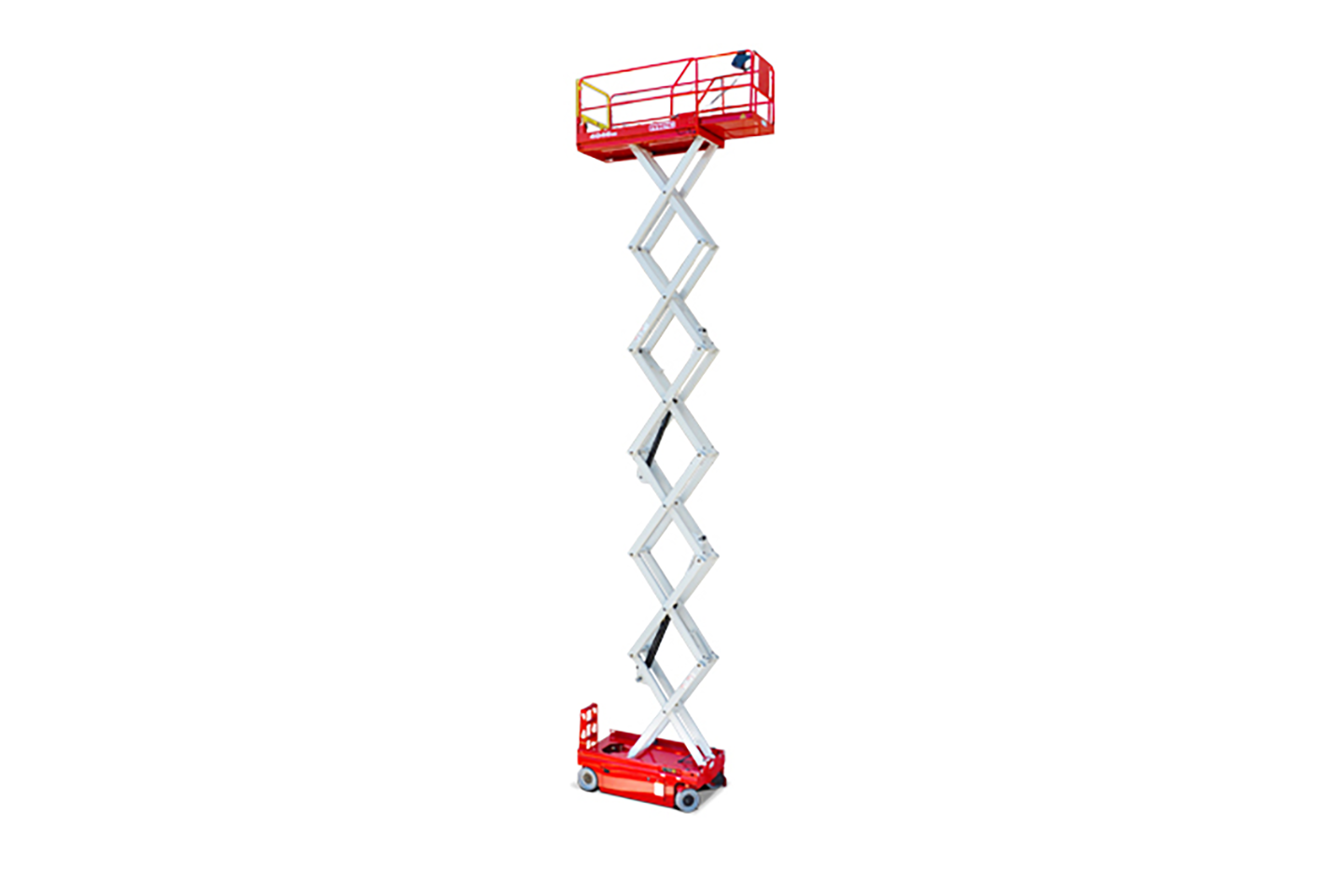

| Specification | JLG ES 4046 | JLG R4045 | JLG 4069LE | Genie GS4046 | Genie GS4069 | MEC 4046SE |
|---|---|---|---|---|---|---|
| Working Height | 45' | 46' | 46' | 45' | 46' | 45' |
| Width | 46" | 45" | 69" | 46" | 69" | 46" |
| Overall Machine Length | 106.6" | 106" | 122" | 98" | 123" | 98" |
| Weight (lbs) | 6,230 | 7,000 | 10,560 | 6,871 | 7,140 | 6,747 |
| Lift Capacity (lbs) restricted/unrestricted | 770 | 770 | 800 | 770 | 750 | 700 |
| Ground Bearing Pressure (psi) | 152 | 135 | 61 | 170 | 167 | 133 |
